# DES

DES is a symmetric block cipher with 64-bit block size and 56-bit key size.

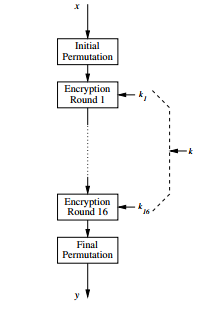

DES is an iterative algorithm, with encryption being handled in 16 rounds each performing the same operation. The subkey k_{i} for each round is derived from the main key k. The underlying structure of DES is called a Feistel network.

After the initial bitwise permutation IP of a 64-bit plaintext x, the plaintext is split into two halves L_0 and R_0. These two 32-bit halves are the input to the Feistel network, which consists of 16 rounds. The right half R_i is fed into the function f. The output of the f function is XORed (denoted by the symbol \oplus) with the left 32-bit half L_i. Finally, the right and left half are swapped. This process repeats in the next round. Generally:

\begin{gather}
L_i = R_{i-1}\notag\\
R_i = L_{i-1} \oplus f(R_{i-1}, k_i)\notag\\
\end{gather}

After round 16, the 32-bit halves L_{16} and R_{16} are swapped again, and the final permutation IP^{−1} is the last operation of DES. As the notation suggests, IP^{−1} is the inverse of the initial permutation IP. In each round, a round key k_{i} is derived from the main 56-bit key using what is called the key schedule.

These are just basic bitwise permutations. Both permutations do not increase the security of DES at all. The exact rationale for the existence of these two permutations is not known, but it seems likely that their original purpose was to arrange the plaintext, ciphertext and bits in a bytewise manner to make data fetches easier for 8-bit data busses, which were the state-of-the-art register size in the early 1970s.

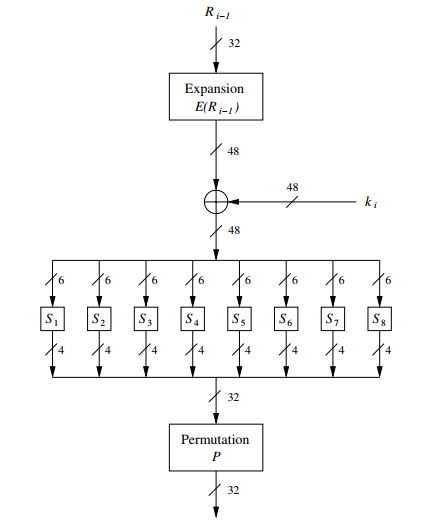

The f function plays a crucial role for the security of DES. In round i it takes the right half R_{i−1} of the output (32 bits) of the previous round and the current round key k_i as input. The output of the f function is used as an XOR-mask for encrypting the left half input bits L_{i−1}.

In short, the steps performed are:

• expansion of the 32-bit input to 48 bits using a speciall type of permutation called E-box
• 48-bit result is XOR-ed with k_{i}
• result is divided in eight 6-bit blocks and fed into eight different S\text{-}boxes (substitution boxes). Each S-box maps a 6-bit input to a 4-bit output, which causes confusion
• finally, the 32-bit (eight 4-bit S-box outputs) output is fed into a permutation called P, which causes diffusion

The key schedule derives 16 round keys k_i, each consisting of 48 bits, from the original 56-bit key. Another term for round key is subkey. First, note that the DES input key is often stated as 64-bit, where every eighth bit is used as an odd parity bit over the preceding seven bits. It is not quite clear why DES was specified that way. In any case, the eight parity bits are not actual key bits and do not increase the security. DES is a 56-bit cipher, not a 64-bit one.

One advantage of DES is that decryption is essentially the same function as encryption. This is because DES is based on a Feistel network.

DES is not considered secure anymore because of the small key size. However, 3DES (triple-DES, which means three successive DES applications) is still used and viable.
